P300 event-related potentials in patients with multiple sclerosis
The Egyptian Journal of Neurology, Psychiatry and Neurosurgery volume 59, Article number: 126 (2023)
Cognitive impairment (CI) is a common and disabling symptom during the disease even in the earliest “preclinical” phase of patients with MS (pwMS). This study aims to assess cognitive function by measuring P300 event-related potential (ERP) and to look into the relationship between P300 abnormalities with the severity of the physical disability, education level, and disease duration.
Fifty pwMS (28 females and 22 males) aged 20–54 years and fifty healthy subjects comprised of 21 females and 29 males aged 18–50 years serves as the control group was studied. All participants underwent medical history, neurological examination, cognitive functions using the Montreal Cognitive Assessment scale (MoCA) and the P300 ERP.
In this study, 48% of pwMS had CI. They had a longer P300 latency and a lower amplitude. Those with impaired cognition had a longer duration of illness and higher Expanded Disability Status Scale (EDSS), whereas those with intact cognition had a higher education level. P300 latency was correlated positively with EDSS and disease duration, but negatively with education level. P300 amplitude was found to be negatively correlated with EDSS, and disease duration but positively to the education level.
P300, as a non-invasive test, would support the presence of CI in pwMS patients and could be used for screening in daily practice. P300 has a strong relationship with illness duration, disease subtypes, EDSS, and education level.
Multiple sclerosis (MS) is a chronic, progressive, inflammatory, demyelinating autoimmune disorder caused by autoantibodies and immune cells destroying the myelin sheath . MS causes a wide range of symptoms, including motor, cognitive, and neuropsychiatric issues, due to the widespread development of myelin destruction .
Cognitive impairment (CI) is a common and disabling symptom of all phenotypes of MS patients [3, 4], with a prevalence ranging from 34 to 65% of pwMS during the disease, even in the earliest "preclinical" phase [5, 6].
Various neuropsychological testing batteries have been developed to target the key areas of MS cognitive dysfunction in clinical practice, though their use is limited due to the long administration time, practice effect, and physical disability . P300 event-related brain potentials (ERPs) have been used as neurophysiological markers in the assessment of cognition in pwMS in addition to neuropsychological tests [9, 10] and, more recently, in clinical practice . Their measurement can shed light on cognitive processing stages, such as encoding, selecting, memorizing, and decision-making.
Given that cognitive disorders are among the most common problems in pwMS, the current study sought to assess the P300 based on age, gender, level of education, length of illness, EDSS, and total MoCA scores (as important individual characteristics).
Between November 2021 and November 2022, a case–control study was conducted at the MS clinic at Baghdad Teaching Hospital/Medical City. The IRB (Institute Review Board) of Al-Nahrain University's College of Medicine approved the study, and all participants provided informed consent.
Fifty pwMS were included in this study after meeting the disease’s McDonald Criteria . They were made up of 28 females and 22 males ranging in age from 20 to 54. Their illness lasted anywhere from a year to more than 20 years. Patients with relapsing–remitting MS and secondary-progressive MS phenotypes were investigated. The patients had to be able to read and write to be included in the study, and none of them were taking any medications that had a significant impact on their cognitive performance. All of the patients were receiving immunomodulation therapy, such as interferon or glatiramer acetate. Patients with a history of impaired hearing function, a diagnosed psychiatric disorder, or a CI before MS diagnosis were barred from participating in the study.
Fifty healthy subjects consisting of 29 males and 21 females aged 18–50 years serve as the control group.
History and clinical examination
For all patients, a detailed history and neurological examination were performed:
Expanded disability status scale
Kurtzke's  Expanded Disability Status Scale (EDSS) is used to assess the level of disability in pwMS. In a 20-step scale, EDSS scores range from 0 (normal) to 10 (death due to MS) (with 0.5-unit increments). EDSS steps 1.0–4.5 refer to fully ambulatory patients, with the precise step number determined by the functional system score(s), whereas EDSS steps 5.0–9.5 are primarily defined by ambulation impairment .
Assessment of cognitive function
The Montreal cognitive assessment (MoCA) score was used to assess cognitive function. It evaluates multiple cognitive domains and is scored out of 30 points. A normal MoCA score range is between 0 and 30, with a score of 26 or higher considered normal [15, 16].
Measurement of P300
In a silent room, P300 was elicited using a Key point electromyography machine (Medtronic, Denmark) and an auditory "oddball" paradigm. Under the 10–20 International System, standard Ag/AgCl electrodes positioned at Cz, referenced at the mastoid process, and a forehead ground was used.
Subjects were instructed to mentally count rare tones while lying comfortably on the couch with their eyes closed, and they were then asked to report the number of rare tones counted at the end of each run. To determine performance accuracy, each patient's count was compared to the actual number of target tones provided at the end of each session. Two or three trials were conducted to ensure the consistency of the waveform, with each trial lasting until 200 artifact-free infrequent stimuli responses were recorded and averaged. The P300's latencies and amplitudes were measured.
The impedance was kept at 5K or less, the bandpass filter was set between 1 and 30 Hz, and the analysis time was set at 1024 ms with a 100 ms pre-stimulus baseline record.
SPSS statistical software, version 25, was used for all statistical analyses (IBM Corporation, USA). The quantitative variables were presented as means with standard deviations (SD) and were analyzed using an independent Student t test. The Chi-square test was used to analyze categorical variables that were expressed as counts and percentages. Pearson's correlation analysis was used to examine correlations between different quantitative variables. A statistically significant level of statistics was considered for all tests when p < 0.05.
Table 1 displays the study population's basic demographic information. There was no statistically significant difference between the studied groups in terms of age, gender, or employment. On the contrary, pwMS had significantly lower education levels and total MoCA scores than controls (p < 0.001). Table 2 shows that pwMS had significantly longer P300 latency and smaller amplitude than controls (p 0.001, respectively) (p < 0.001, respectively).
The duration of illness and the EDSS were significantly higher in those with impaired cognition (p = 0.001, p < 0.001, respectively) when pwMS were divided into those with intact and those with impaired cognition based on the cutoff value of 26 of the MoCA score. Those with impaired cognition had significantly lower education levels and total MoCA scores (Table 3).
Table 4 shows that in pwMS with impaired versus intact cognition, the P300 latency was significantly prolonged, while the amplitude was significantly lower (p < 0.001, respectively).

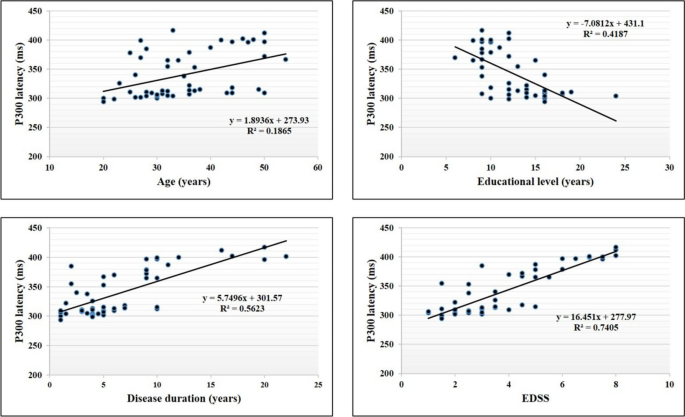

Age and P300 latency were found to have a significant positive correlation (r = 0.432, p < 0.001). On the other hand, there was a significant negative correlation with P300 amplitude (r = − 0.415, p < 0.001). Similarly, disease duration was found to be positively related to P300 latency and negatively related to P300 amplitude (r = 0.750, p < 0.001, and r = − 0.838; p < 0.001, respectively). Likewise, there was a significant positive correlation between EDSS and P300 latency (r = 0.861, p < 0.001) but it was negatively correlated with P300 amplitude (r = − 0.915, p < 0.001).
Educational level, on the other hand, has a negative correlation with P300 latency and a positive correlation with P300 amplitude (r = − 0.623; p = 0.002 and r = 0.555; p < 0.001, respectively). P300 wave latency was also found to be negatively related to the total MoCA score (r = − 0.963, p < 0.001) and positively related to P300 amplitude (r = 0.932, p < 0.001).
In this study, 48% of pwMS had CI, which is within the range reported elsewhere, indicating widespread focal white matter lesions that are primarily related to impaired information processing speed, implying MS-related CI as a disconnection syndrome .
Gender had no significant impact on the cognitive function of the participants, according to the current study’s findings, which are consistent with the findings of other researchers [18,19,20], but contradict the findings of Benedict et al. , who identified the male gender as one of the risk factors for CI in pwMS, and Shaygannejhad et al.  who reported more cognitive complications in women than men. The lack of consistency could be attributed to the study's small sample size, different MS disease types, disease duration, and cognitive test type.
Age of pwMS did not affect cognitive function in this study, which is consistent with the findings of Hassanshahi et al.  but differs from the findings of other researchers [18, 19, 23], who reported a decrease in cognitive level with aging or a significant relationship between age and learning, memory, and executive functions based on different batteries. The inconsistency with the latter results could be attributed to the study of different age groups, evaluation of older ages, or differences in cognitive tests.
In the current study, CI was significantly related to the duration of illness, as evidenced by a significant association between disease duration and prolonged P300 latency, lower P300 amplitude, and low MoCA score, all of which reflect changes in the central nervous system over time [24, 25]. Patients' cognitive abilities deteriorated over time, as measured by assessments of their short-term verbal memory, abstract reasoning, and linguistic abilities [7, 26,27,28]. In contrast to our findings, other studies demonstrate weak or no correlation between CI and disease duration [29, 30].
In this study, low educational attainment was linked to poor cognitive performance in pwMS. This finding is consistent with the findings of Shaygannejhad and colleagues , who discovered a significant relationship between cognitive disorders and educational level. It was reported that the higher education groups had the highest scores on the correct answer to the Judgment of Line Orientation Test  and a lower level of education was most important for CI even in patients without gray matter atrophy [32, 33]. In contrast to these findings, some research groups have stated that education level does not act as a predictor of cognitive dysfunction [19, 20, 34], which could be due to differences in cognitive assessment tools, sample populations, and sizes.
The current study found that P300 ERP at Cz (central lobe) was significantly different in pwMS compared to the control group. The prolonged latency reflects the length of time it takes for information to be processed, whereas the reduced amplitude reflects a disruption in the activities of some centers (frontal and parietal cortex, thalamus, and temporomesial cortex) or temporal dispersion of information processing .
In people with MS, P300 REP was linked to disease duration, EDSS, education level, and MoCA score. Other studies have confirmed and described these findings [10, 39, 40]. However, they differed from studies that found pwMS to have normal P300 latencies [41, 42], unaffected amplitude , or no statistical correlations between P300 latency and/or amplitude and disease duration . This difference could be attributed to the inclusion of more patients with lower physical disabilities or to the fact that the disease manifested itself in individual patients at different ages.
Total MoCA scores of pwMS were positively correlated with P300 amplitude and negatively correlated with P300 latency, which is consistent with Tag El-din and colleagues' findings .
The strong correlation between P300 ERP and EDSS and disease duration supports Ateş and colleagues' findings . Furthermore, Triantafyllou and colleagues  discovered a significant relationship with EDSS but not with disease duration. Rasoulifard et al.  discovered a significant correlation between P300 latency but not amplitude, disease duration, or EDSS.
Patients with more severe physical disabilities (EDSS) had more cognitive dysfunctions, longer latencies, and lower amplitudes of P300 ERPs, according to the findings of this study. These findings were also reported by Kocer et al. .
The small sample size, the inclusion of only relapsing–remitting and secondary-progressive MS phenotypes, the difference in educational level, and the wide range of disease duration are among the limitations of our study. Consequently, longitudinal research may be required in the future for additional evaluation.
Our study concludes that (1) P300, as a non-invasive test would support the presence of CI in pwMS and can be used for screening in daily practice. (2) P300 is significantly related to illness duration, education level, and EDSS. Based on the findings, which show frequent changes in P300 in pwMS, we recommend that CI be diagnosed early to plan additional supportive treatment.
Availability of data and materials
All data generated or analyzed during this study are included in this published article. The data sets used and/or analyzed during the current study are available from the corresponding author on reasonable request.
Expanded disability status scale
Montreal Cognitive Assessment test
Patients with multiple sclerosis
Relapsing–remitting multiple sclerosis
Secondary progressive multiple sclerosis
Szilasiová J, Rosenberger J, Mikula P, Vitková M, Fedičová M, Gdovinová Z. Cognitive event-related potentials—the P300 wave is a prognostic factor of long-term disability progression in patients with multiple sclerosis. J Clin Neurophysiol. 2022;39(5):390–6.
Shah A, Panchal V, Patel K, Alimohamed Z, Kaka N, Sethi Y, et al. Pathogenesis and management of multiple sclerosis revisited. Dis Mon. 2022; 101497.
Brochet B, Ruet A. Cognitive impairment in multiple sclerosis with regards to disease duration and clinical phenotypes. Front Neurol. 2019;10:261.
Paolicelli D, Manni A, Iaffaldano A, Tancredi G, Ricci K, Gentile E, et al. Magnetoencephalography and high-density electroencephalography study of acoustic event related potentials in early stage of multiple sclerosis: a pilot study on cognitive impairment and fatigue. Brain Sci. 2021;11(4):481.
Benedict RHB, Amato MP, DeLuca J, Geurts JJG. Cognitive impairment in multiple sclerosis: clinical management, MRI, and therapeutic avenues. Lancet Neurol. 2020;19:860–71.
DeLuca J, Chiaravalloti ND, Sandroff BM. Treatment and management of cognitive dysfunction in patients with multiple sclerosis. Nat Rev Neurol. 2020;16:319–32.
Ruano L, Portaccio E, Goretti B, Niccolai C, Severo M, Patti F, et al. Age and disability drive cognitive impairment in multiple sclerosis across disease subtypes. Mult Scler. 2017;23:1258–67.
Sumowski JF, Benedict R, Enzinger C, Filippi M, Geurts JJ, Hamalainen P, et al. Cognition in multiple sclerosis: state of the field and priorities for the future. Neurology. 2018;90:278–88.
Chinnadurai SA, Venkatesan SA, Shankar G, Samivel B, Ranganathan LN. A study of cognitive fatigue in multiple sclerosis with novel clinical and electrophysiological parameters utilizing the event related potential P300. Mult Scler Relat Disord. 2016;10:1–6.
Pokryszko-Dragan A, Zagrajek M, Slotwinski K, Bilinska M, Gruszka E, Podemski R. Event-related potentials and cognitive performance in multiple sclerosis patients with fatigue. Neurol Sci. 2016;37:1545–56.
Lazarevic S, AzanjacArsic A, Aleksic D, Toncev G, Miletic-Drakulic S. Depression and fatigue in patients with multiple sclerosis have no influence on the parameters of cognitive evoked potentials. J Clin Neurophysiol. 2021;38:36–42.
Thompson AJ, Banwell BL, Barkhof F, Carroll WM, Coetzee T, Comi G, et al. Diagnosis of multiple sclerosis: 2017 revisions of the McDonald criteria. Lancet Neurol. 2018;17(2):162–73.
Kurtzke JF. Rating neurologic impairment in multiple sclerosis: an expanded disability status scale (EDSS). Neurology. 1983;33(11):1444–5218.
Hatipoglu H, Kabay SC, Hatipoglu MG, Ozden H. Expanded Disability Status Scale-Based Disability and dental-periodontal conditions in patients with multiple sclerosis. Med Princ Pract. 2016;25:49–55.
Nasreddine ZS, Phillips NA, Bédirian V, Charbonneau S, Whitehead V, Collin I, et al. The Montreal Cognitive Assessment, MoCA: a brief screening tool for mild cognitive impairment. J Am Geriat Soc. 2005;53(4):695–9.
Guo QH, Cao XY, Zhou Y, Zhao QH, Ding D, Hong Z. Application study of quick cognitive screening test in identifying mild cognitive impairment. Neurosci Bull. 2010;26(1):47–54.
Rocca MA, Pravatà E, Valsasina P, Radaelli M, Colombo B, Vacchi L, et al. Hippocampal-DMN disconnectivity in MS is related to WM lesions and depression. Hum Brain Mapp. 2015;36:5051–63.
Vanotti S, Smerbeck A, Eizaguirre MB, Saladino ML, Benedict RRH, Caceres FJ. BICAMS in the Argentine population: relationship with clinical and sociodemographic variables. Appl Neuropsychol Adult. 2018;25:424–33.
Pouramiri M, Azimian M, Akbarfahimi Z, Pishyareh E, Hossienzadeh S. Investigating the relationship between individual and clinical characteristics and executive dysfunction of multiple sclerosis individuals. Arch Rehabil. 2019;20:114–23.
Hassanshahi E, Asadollahi Z, Azin H, Hassanshahi J, Hassanshahi A, Azin M. Cognitive function in multiple sclerosis patients based on age, gender, and education level. Acta Med Iran. 2020;58(10):500–7.
Benedict RH, Zivadinov R. Risk factors for and management of cognitive dysfunction in multiple sclerosis. Nat Rev Neurol. 2011;7:332–42.
Shaygannejad V, Afshar H. The frequency of cognitive dysfunction among multiple sclerosis patients with mild physical disability. J Isfahan Med Sch. 2012;29:167.
Tam JW, Schmitter-Edgecombe M. The role of processing speed in the Brief Visuospatial Memory Test—revised. Clin Neuropsychol. 2013;27:962–72.
Daams M, Steenwijk MD, Schoonheim MM, Wattjes MP, Balk LJ, Tewarie PK, et al. Multi-parametric structural magnetic resonance imaging in relation to cognitive dysfunction in long-standing multiple sclerosis. Mult Scler. 2016;22:608–19.
Ouellette R, Bergendal Å, Shams S, Martola J, Mainero C, KristoffersenWiberg M, et al. Lesion accumulation is predictive of long-term cognitive decline in multiple sclerosis. Mult Scler Relat Disord. 2018;21:110–6.
Amato MP, Ponziani G, Pracucci G, Bracco L, Siracusa G, Amaducci L. Cognitive impairment in early-onset multiple sclerosis. Pattern, predictors, and impact on everyday life in a 4-year follow-up. Arch Neurol. 1995;52:168–72.
Amato MP, Ponziani G, Siracusa G, Sorbi S. Cognitive dysfunction in early-onset multiple sclerosis: a reappraisal after 10 years. Arch Neurol. 2001;58:1602–6.
Achiron A, Chapman J, Magalashvili D, Dolev M, Lavie M, Bercovich E, et al. Modeling of cognitive impairment by disease duration in multiple sclerosis: a cross-sectional study. PLoS ONE. 2013;8: e71058.
Rogers JM, Panegyres PK. Cognitive impairment in multiple sclerosis: evidence-based analysis and recommendations. J Clin Neurosci. 2007;14:919–27.
Chiaravalloti ND, DeLuca J. Cognitive impairment in multiple sclerosis. Lancet Neurol. 2008;7:1139–51.
Caparelli-Dáquer EM, Oliveira-Souza R, Moreira Filho PF. Judgment of line orientation depends on gender, education, and type of error. Brain Cogn. 2009;69:116–20.
Rimkus CM, Avolio IMB, Miotto EC, Pereira SA, Mendes MF, Callegaro D, et al. The protective effects of high-education levels on cognition in different stages of multiple sclerosis. Mult Scler Relat Disord. 2018;22:41–8.
Eijlers AJC, Meijer KA, van Geest Q, Geurts JJG, Schoonheim MM. Determinants of cognitive impairment in patients with multiple sclerosis with and without atrophy. Neuroradiology. 2018;288:544–51.
Maloni H. Cognitive impairment in multiple sclerosis. J Nurse Pract. 2018;14:172–7.
Patti F, Nicoletti A, Messina S, Bruno E, Fermo SL, Quattrocchi G, et al. Prevalence and incidence of cognitive impairment in multiple sclerosis: a population-based survey in Catania. Sicily J Neurol. 2015;262(4):923–30.
Amato MP, Prestipino E, Bellinvia A, Niccolai C, Razzolini L, Pastò L, et al. Cognitive impairment in multiple sclerosis: an exploratory analysis of environmental and lifestyle risk factors. PLoS ONE. 2019;14(10): e0222929.
Carotenuto A, Moccia M, Costabile T, Signoriello E, Paolicelli D, Simone M, et al. Associations between cognitive impairment at onset and disability accrual in young people with multiple sclerosis. Sci Rep. 2019;9:18074.
Fang C, Zhang Y, Zhang M, Fang Q. P300 measures and drive-related risks: a systematic review and meta-analysis. Int J Environ Res Public Health. 2020;17(15):5266.
Montaser IA, Rashad MH, Abd El-Aziz MA, Mashaal AG. Cortical lesions in a sample of Egyptian multiple sclerosis patients. Egyp J Hospital Med. 2018;72(11):5604–8.
Kiiski H, Reilly RB, Lonergan R, Kelly S, O’Brien MC, Kinsella K, et al. Detection of cognitive impairment in multiple sclerosis based on P300 event-related potential. Int J Phys Med Rehabil. 2018;6:479.
Newton MR, Barrett G, Callanan MM, Towell AD. Cognitive event-related potentials in multiple sclerosis. Brain. 1989;112:1637–60.
Ruchkin DS, Grafman J, Krauss GL, Johnson R Jr, Canoune H, Ritter W. Event-related brain potential evidence for a verbal working memory deficit in multiple sclerosis. Brain. 1994;117:289–305.
Gonzalez-Rosa JJ, Vazquez-Marrufo M, Vaquero E, Duque P, Borges M, Gomez-Gonzalez CM, et al. Cluster analysis of behavioral and event-related potentials during a contingent negative variation paradigm in remitting-relapsing and benign forms of multiple sclerosis. BMC Neurol. 2011;11:1–19.
Magnano I, Aiello I, Piras MRJ. Cognitive impairment and neurophysiological correlates in MS. Neurol Sci. 2006;245(1–2):117–22.
Tag El-din EA, Bahnasy WS, Rashed KH, Abd El-Samad ER, Tea AH. Cognitive functions in multiple sclerosis patients. Egyptian J Neurol Psychiatr Neurosurg. 2016;53:168–73.
Ateş H, Tunalı G, Aras L. The contribution of P300 test for cognitive evaluation in multiple sclerosis. Ondokuz Mayis Univ Tip Dergisi. 2001;18(2):87–96.
Triantafyllou NI, Voumvourakis K, Zalonis I, Sfagos K, Mantouvalos V, Malliara S, et al. Cognition in relapsing–remitting multiple sclerosis: a multichannel event-related potential (P300) study. Acta Neurol Scand. 1992;85(1):10–3.
Rasoulifard P, Mohammadkhani G, Farahani S, Sahraiyan M, Jalaie S, Shushtary SS. The effect of duration of multiple sclerosis and expanded disability status scale on P300. Audiology. 2013;22(2):55–62.
Kocer B, Unal T, Nazliel B, Biyikli Z, Yesilbudak Z, Karakas S, et al. Evaluating sub-clinical cognitive dysfunction and event-related potentials (P300) in clinically isolated syndrome. Neurol Sci. 2008;29:435–44.
I thank Dr. Sarmad A. Al-Mashta from the MS clinic/Medical City for the clinical assessment of patient and assistant professor Dr. Qasim Al-Mayah from the Research Medical Unit/College of Medicine/Al-Nahrain University for helping in statistical analysis.
This research did not receive any specific grant from funding agencies in the public, commercial, or not-for-profit sectors.
Ethics approval and consent to participate
The study was approved by the IRB (Institute Review Board) and written consent for participation from all subjects was ensured.
